OUR CLIENTS：China Aerospace Science and Industry Corp
Similar systems such as communications, radar, and high-speed data transmission require high-quality signal sources as carriers for increasingly complex baseband information. The spectral purity of the carrier signal has a direct impact on the following factors. With options for pulsed signal measurements, additive phase noise (including impulse noise) characterization, and integrated high-end signal and spectrum analysis, this device is a unique test instrument. The advent of domestic high-end testing instruments has gradually changed the market status of testing instruments and equipment long-term occupied by foreign brands.

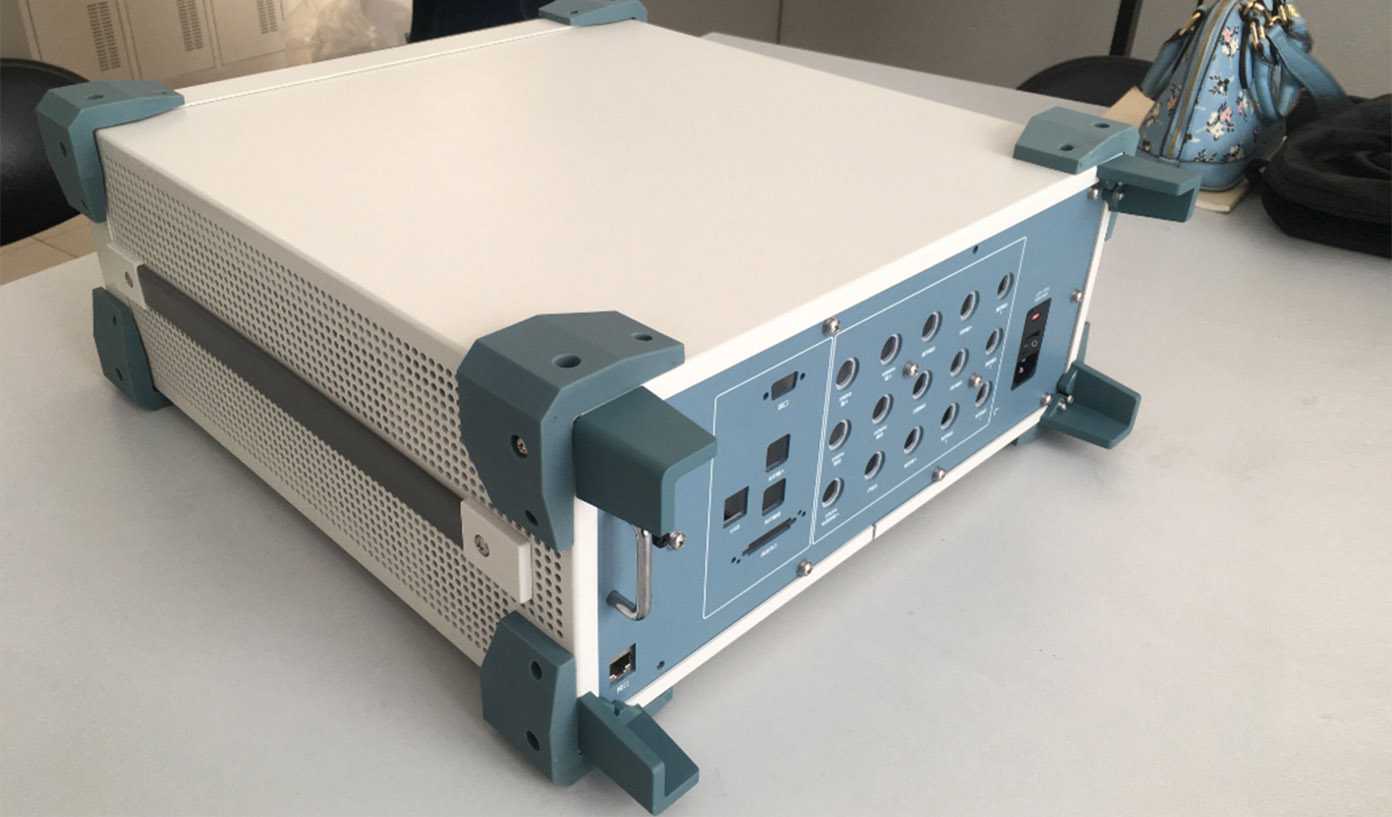

> The rear panel is designed with a variety of terminal ports to meet the test function. Modular design, and designed module locking mechanism to ensure easy disassembly

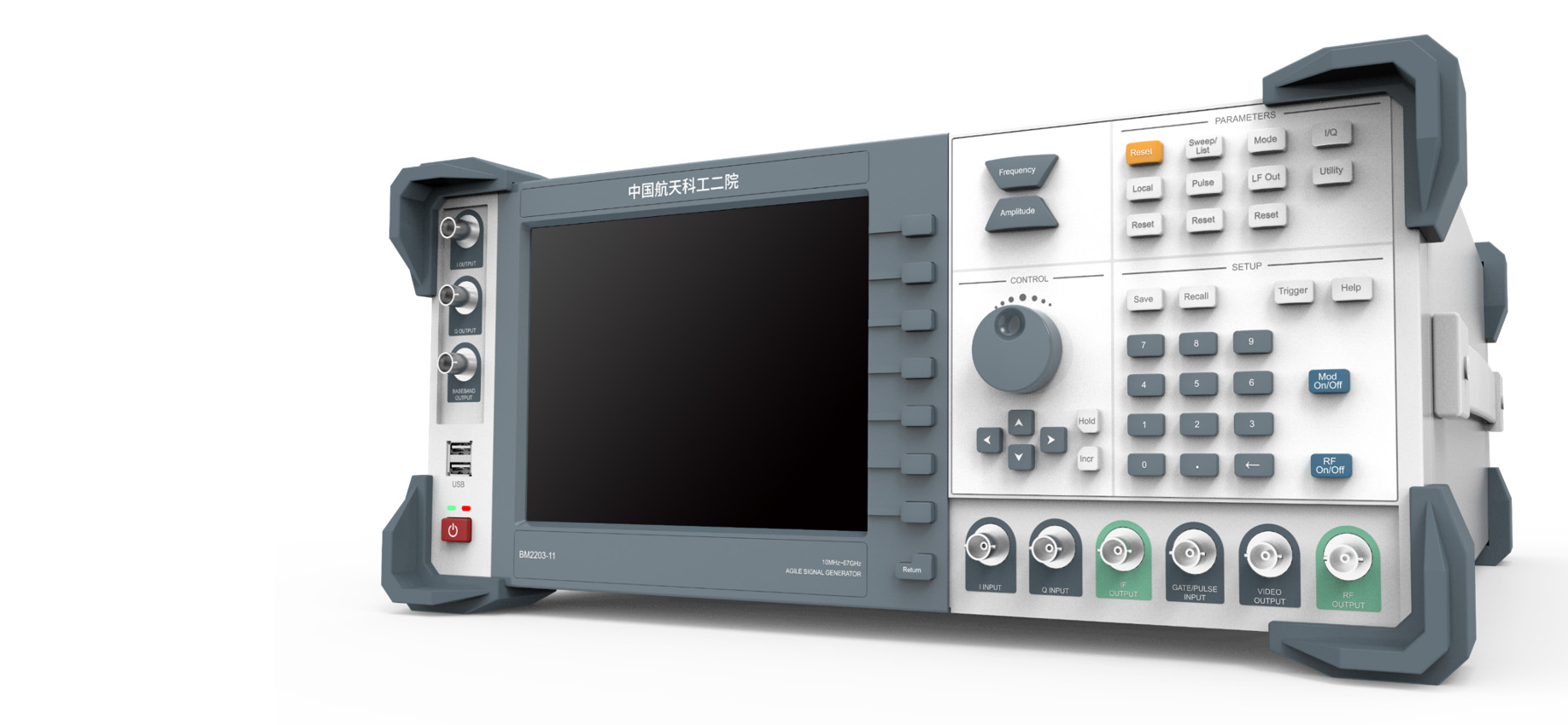

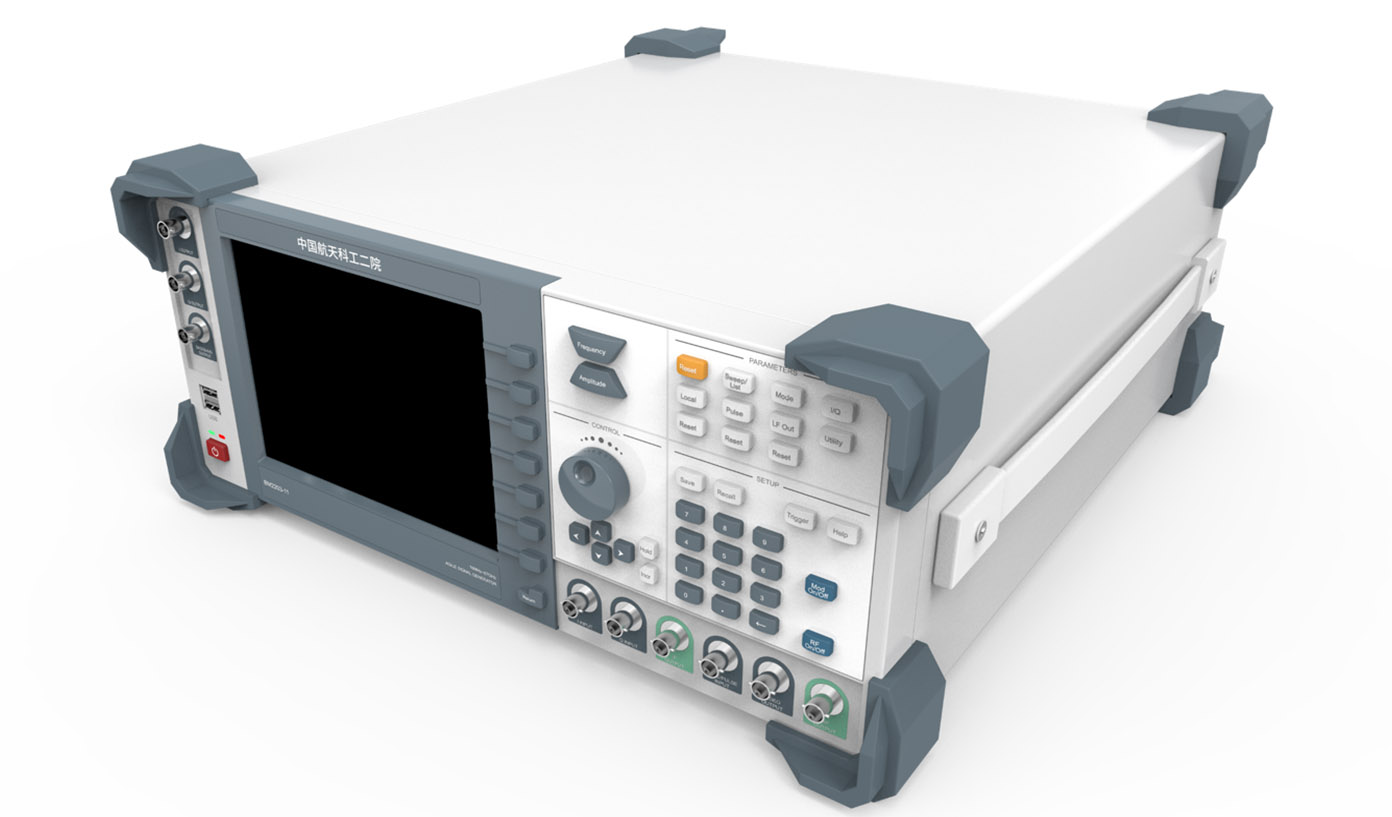

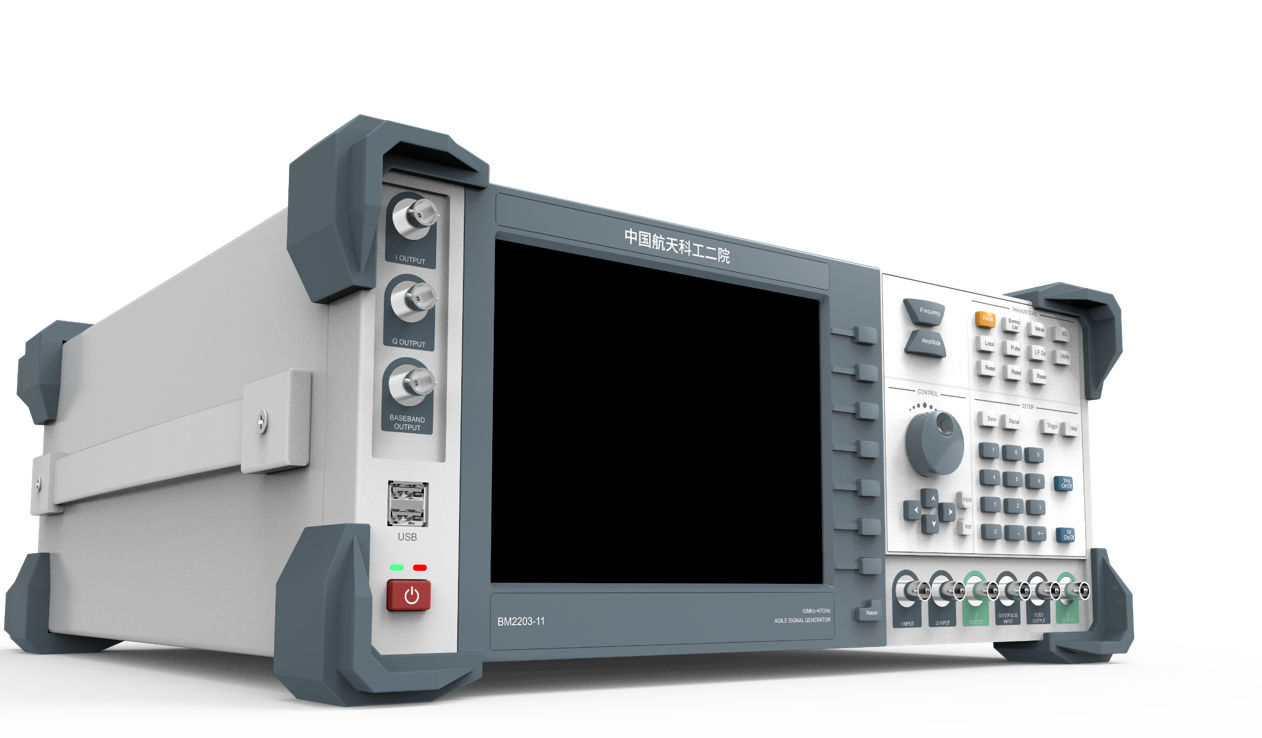

> The whole machine is designed with protective corners to ensure the protection of port terminals and edges. The operation buttons on the panel are divided according to the function, and they can be reasonably used in conjunction with the screen operation
> The overall frame of the chassis is made of aluminum alloy material, the chassis is light in weight, good in grounding, and strong in thermal conductivity; the heat dissipation design adopts the left DC fan to supply air, the right side to vent the air, and the round holes on the left and right sides of the cover

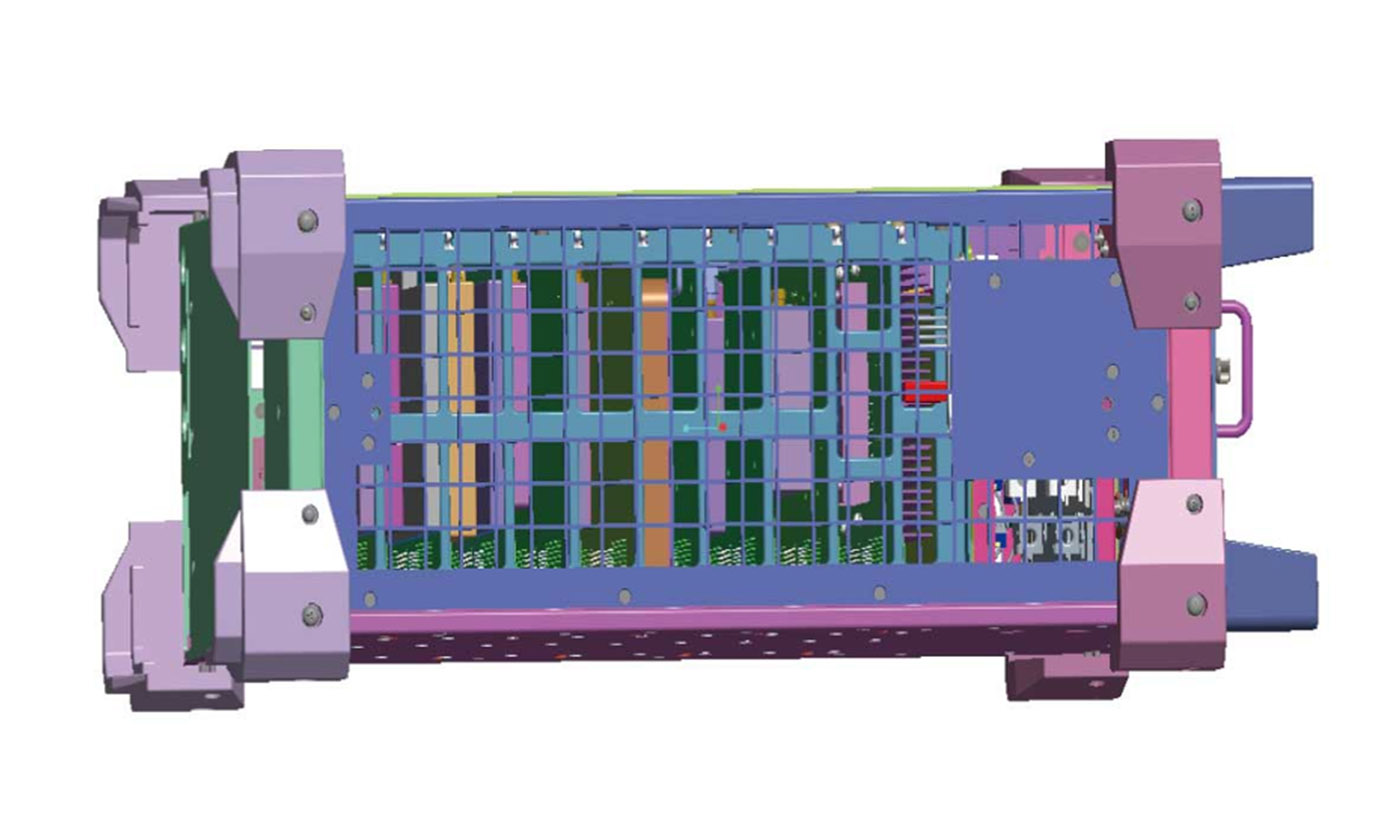

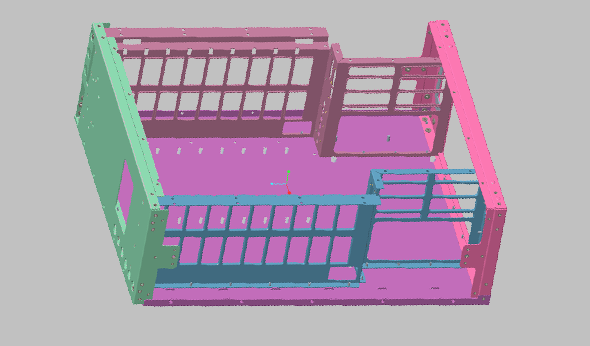

> The internal structural framework is designed for functional differentiation. The structure is all modular design, which can be combined into a complete machine after assembly of single modules, which effectively improves assembly efficiency and makes maintenance more convenient.

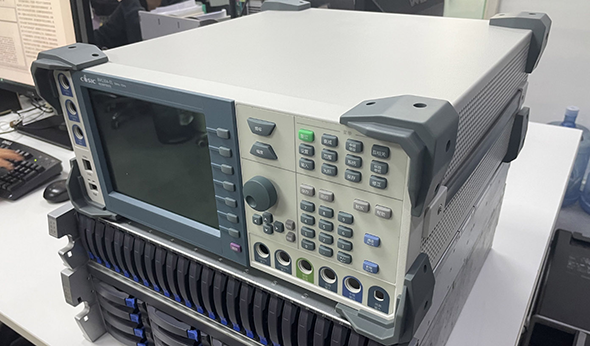

> Figure 1 Prototype
> Figure 2 Prototype
