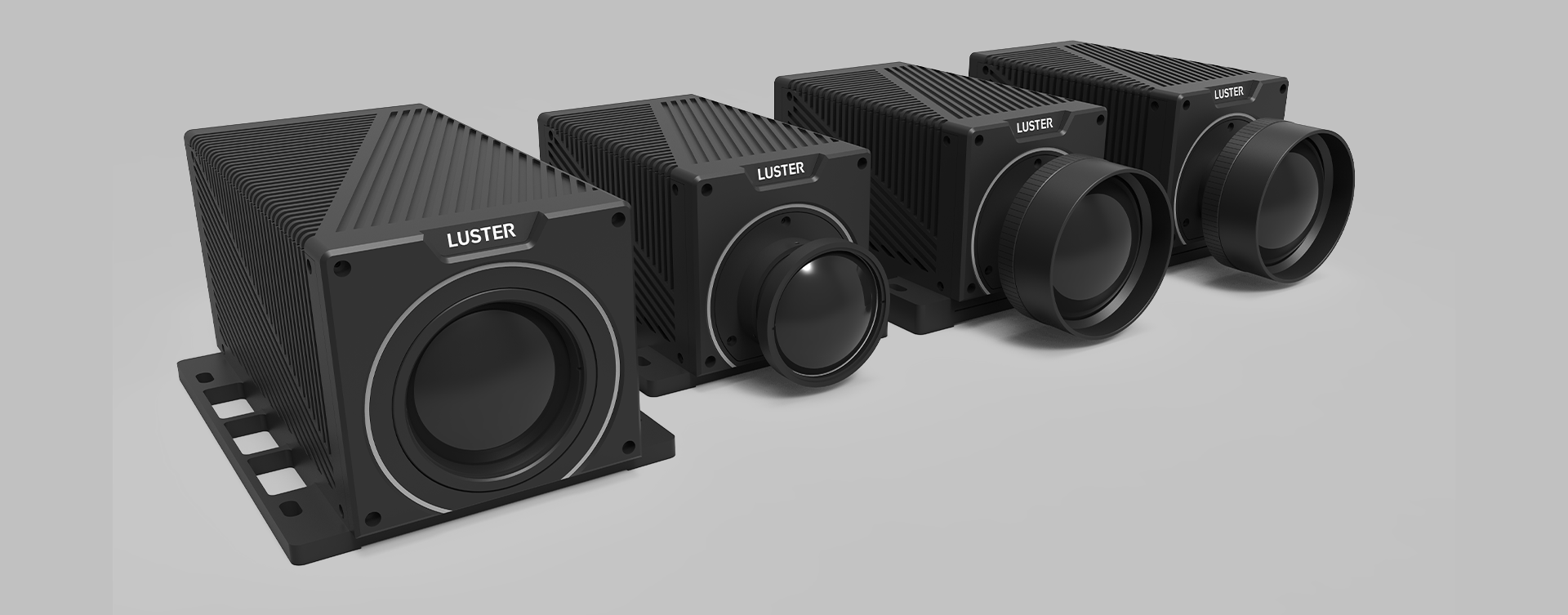

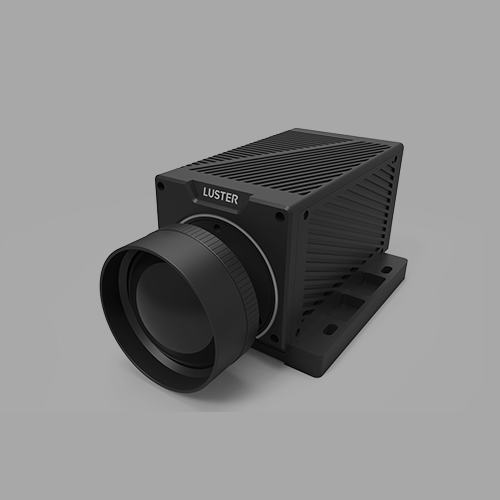

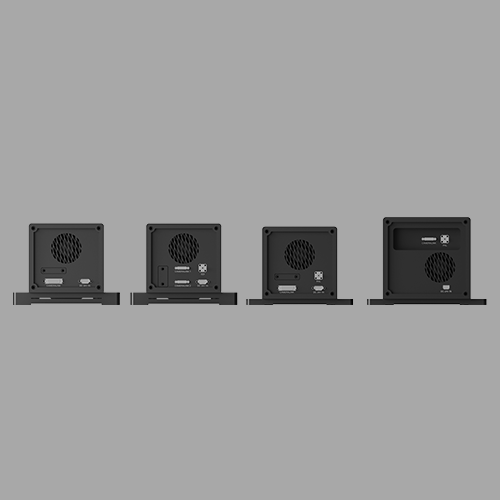

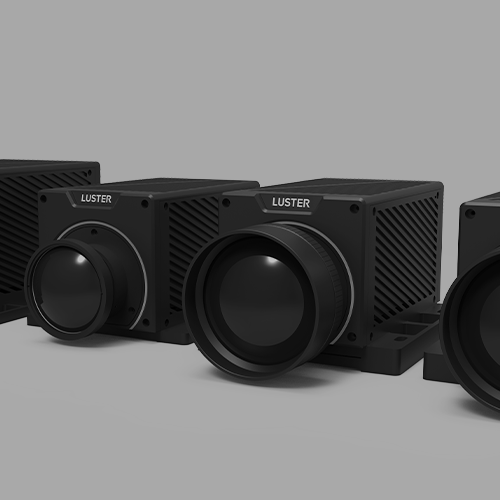

The overall shape of the infrared thermal imaging camera uses stripe elements, which form unique features through different oblique textures and fit the broken line elements of the logo. The processing of the small bevel of the front panel reflects the sense of process and quality of the aluminum alloy material. The weight of the whole machine is as small as possible to meet the requirements of the heat dissipation design, electromagnetic shielding and so on. The structure is designed by material and shell.
