OUR CLIENTS：Digital China

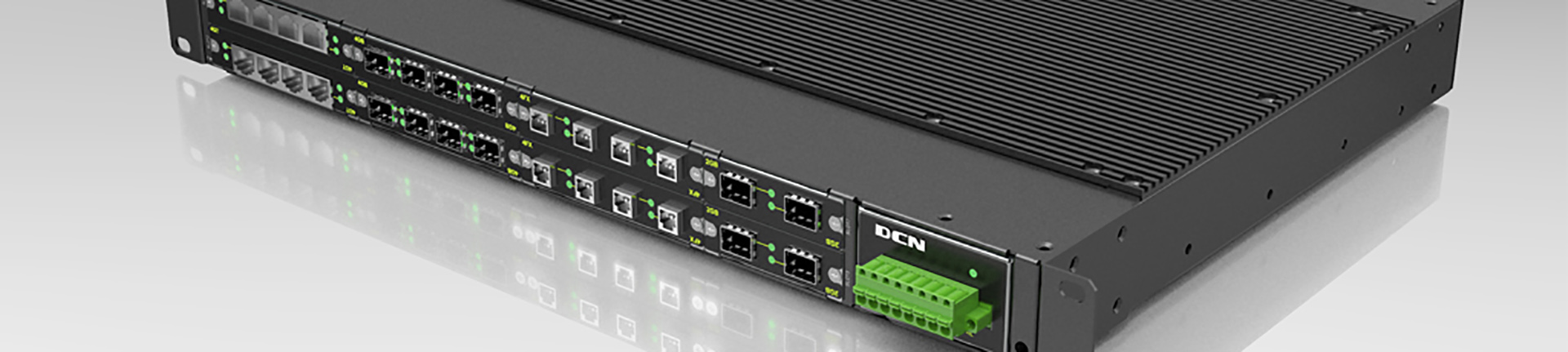

NewLand Industrial grade switch products are professional switch products, support ordinary switch cannot meet the environmental requirements, such as the environment above 50 degrees without fan heat dissipation, to achieve noise operation; Structure design of 1U space up to 24 or 48 ports, can achieve gigabit Ethernet desktop connection capabilities. The appearance design needs to reflect these advantages, so that users can form an equivalent perception of the product.
> Demand Analysis, System Design, Industrial Design, Structural Design, Thermal Design, electromagnetic shield Design, prototype trial production, mass production.

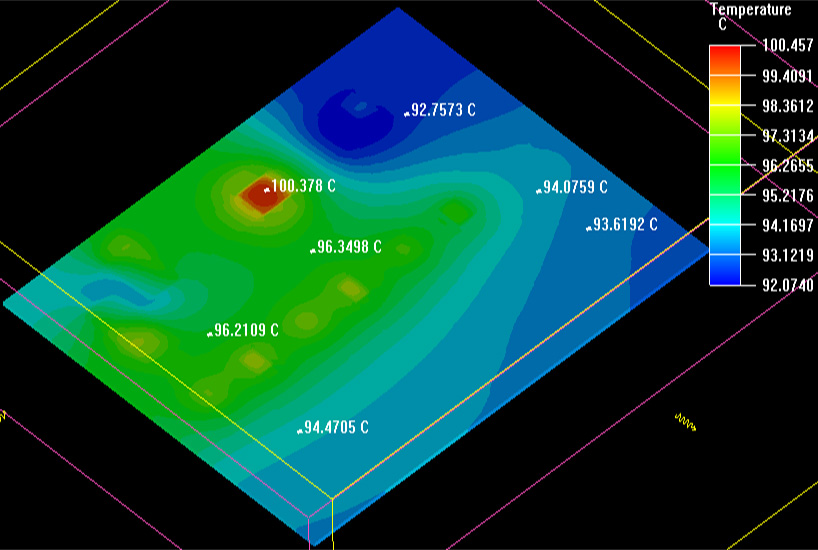

> Through thermal simulation analysis, the surface temperature of the motherboard is 92~101℃, and the temperature distribution is slightly lower on the right side. There should be some heat sensitive components on the motherboard, such as crystal vibration, in the device selection should pay attention to the selection of temperature tolerance specifications of more than 95℃ devices, and close to the right side of the board layout.
> If the tolerance of the thermal conductivity Pad is controllable, it is recommended to choose the thickness of 1.5mm and the thermal conductivity of 2~3w/m.K. The measured results of Burgess Gap Pad 2500S20 and Gap Pad 3000S30 are good.
